Specs

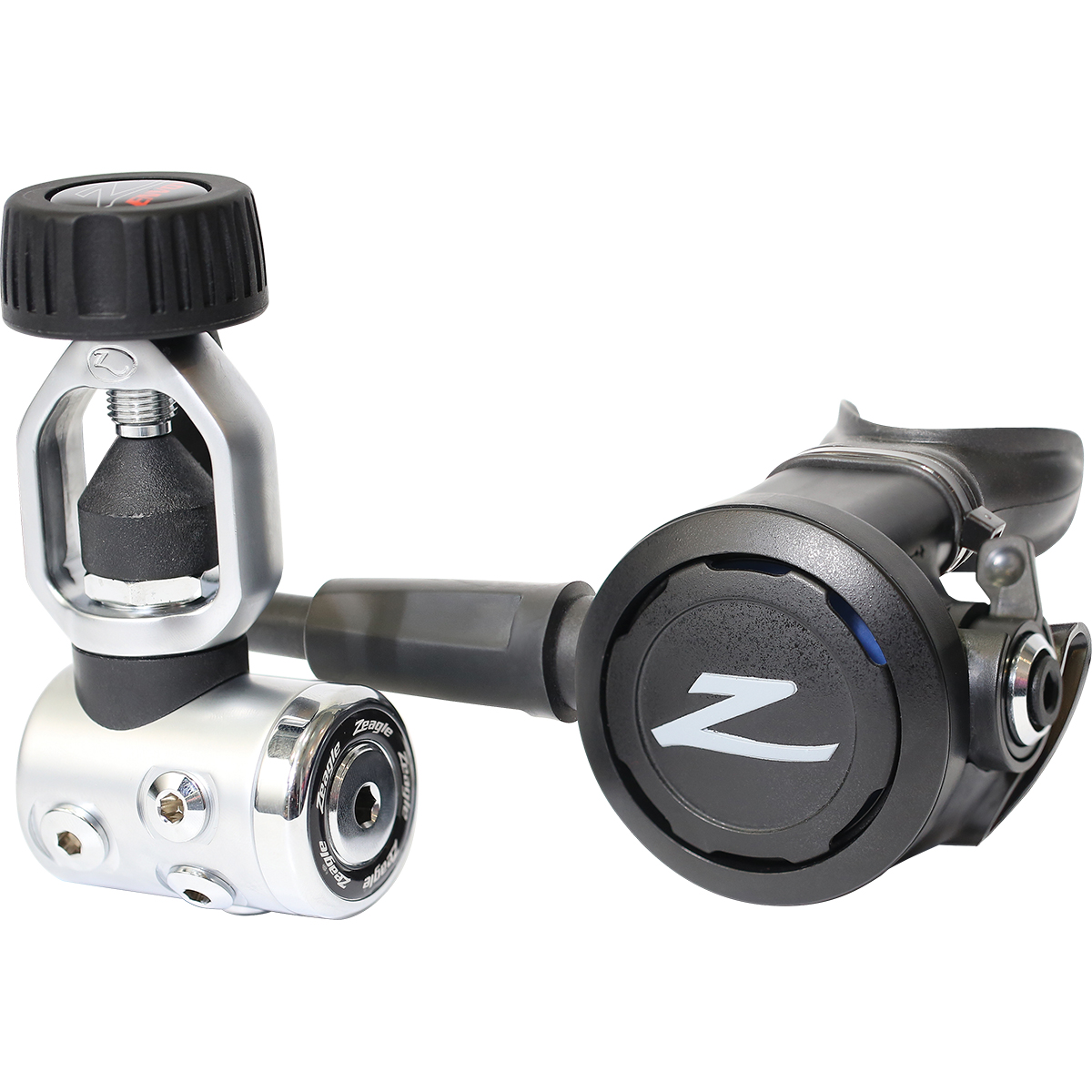

ENVOY II FIRST STAGE FEATURES:
- An economical, yet top-performing regulator
- High Performance Porting
- Conical Precision HP valve
- Balanced Diaphragm
- Yoke or DIN inlet available
- 5 Low Pressure Ports (3/8”-24 UNF)
- 2 High Pressure Ports (7/16”-20 UNF)
- Weight 1.88 lbs (.89 kg)
- Intermediate Pressure: 135-150 psi (9-10 bar)
ENVOY II SECOND STAGE FEATURES:
- Downstream valve
- Venturi lever gives you free-flowing control and helps deliver smooth, reliable breathing
- Balanced Diaphragm
- Weight: .42 lb. (.26 kg) (w/o hose)
- Hose Length: 30 in. (.76 m)
First Stage Materials:
Body: Brass
O-Rings: Buna-N
Seat: Advanced Polymer
HP Valve: Stainless Steel
Second Stage Materials:
Cover: Flexible thermoplastic
Case: Thermoplastic
Poppet Seat: Elastomer
O-rings: Buna-N
Diaphragm:
Exhaust Valve: Elastomer
Mouthpiece: Silicone
